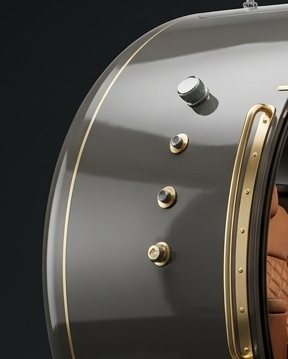

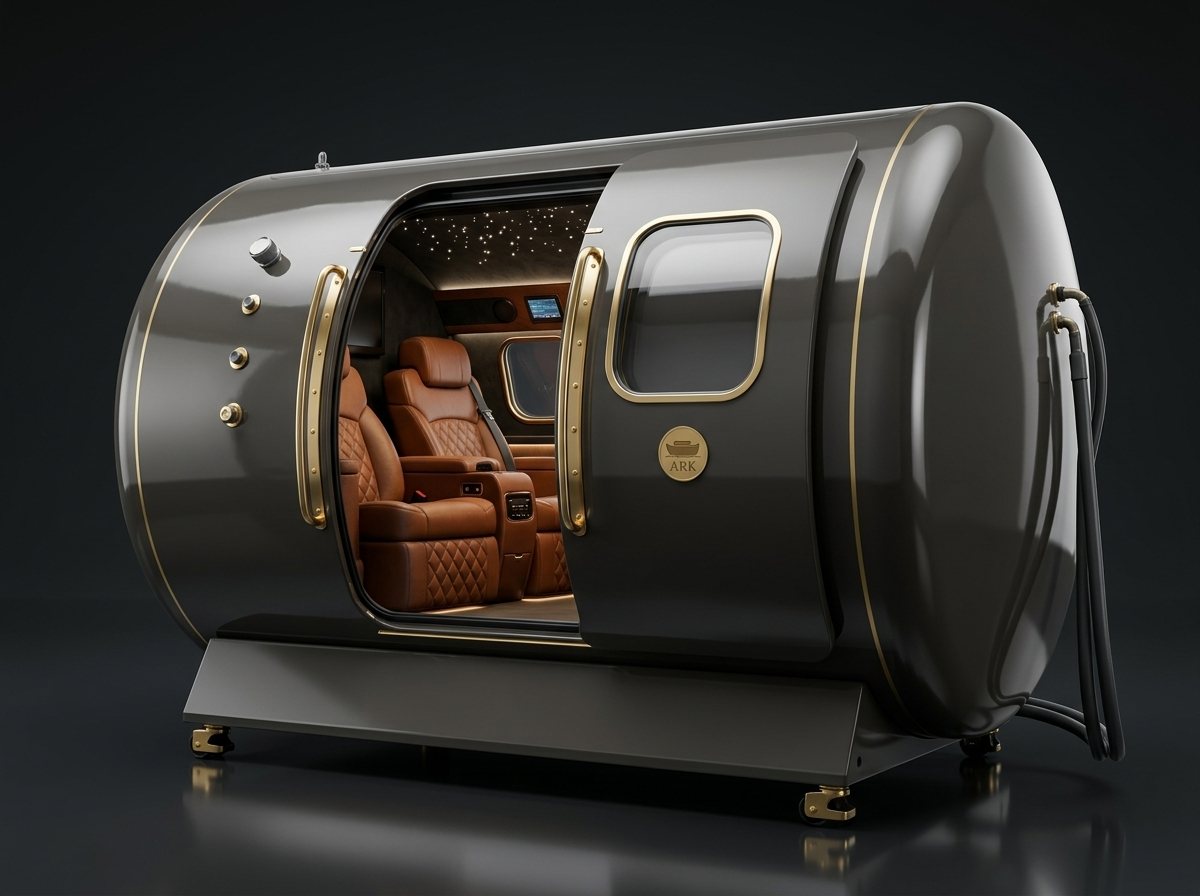

Concept renders in the ARK Graystone finish. Windows, interior trim and accessories follow the specifications below.
- For: Practices selling group or membership sessions.
- Session: Clients walk in and sit; up to four at a time.
- Your room: Planned with your team: room, door, floor load and power at a site survey.
$150 a session, 3 a day, 20 days: $9,000 a month before the lease estimate. Example only, not a projection.
Hyperbaric chambers are prescription medical devices in the US. Confirm your state’s rules on ownership and medical supervision before purchase; we cover this on your practice review.
Specifications
| Pressure | Up to 2.0 ATA; settings of 1.3, 1.6, 1.8 and 2.0 ATA |
|---|---|
| Chamber type | Walk-in hard shell |
| Shell | 4 mm 304 stainless steel |
| Size | 64" deep × 99" long × 79" high |
| Weight | 1,043 lb |
| Seating | Four seated; two- and three-seat layouts available |
| Door | Sliding polycarbonate door, sealed by pressure, releases on depressurization |

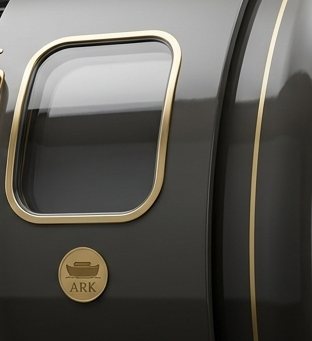

| Window | Large viewing window |
| Controls | Two-way display; inside control panel; readouts for pressure, temperature, humidity and oxygen; session timer |
| Communication | Interphone with attendant alert |
| Oxygen supply | Integrated concentrators, 40 L/min total, 95% purity or higher; headsets, nasal cannulas and face masks |
| Air supply | Two 120 L air compressors; dehumidifier; air conditioning unit optional |
| Power | 110–120 V; 220 V on request |
| Safety | Inside and outside pressure gauges; pressure relief valves; grounding system and mat |
| Noise | Under 60 dB |
| Certifications | CE, ISO 9001, ISO 14001, ISO 13485 |
| Built by | An ISO 13485-certified medical device manufacturer |
| Installation | Site survey first; installation quoted with your chamber |
| Red light | Companion Graystone panel, outside the chamber |
| FDA clearance | Status listed on your quote |
| Warranty | Handled by ARK; term confirmed with your quote |
| Shipping | Varies by model; confirmed in your quote |
What’s in the box
- The chamber
- Oxygen concentrators
- Two air compressors
- Dehumidifier
- Grounding mat
- Breathing headsets, nasal cannulas and face masks
- Interphone
Installation requirements
- Floor space for a chamber 64 by 99 inches, 79 inches high, plus service clearance
- Floor rated for 1,043 lb plus up to four guests; checked at the site survey
- A door and path wide enough for delivery, planned with your team
- 110–120 V power; no special venting required
- Room air conditioning, or the optional unit
Questions
What does my room need for the ARK Lounge?
Floor space for a chamber 64 by 99 inches and 79 inches high, a floor rated for 1,043 lb plus four guests, and 110 to 120 V power. No special venting is required. We plan the room, door and floor with your team at a site survey.
How long until the ARK Lounge is running?
Shipping time varies by model and is confirmed in your quote. You get a written delivery estimate before any deposit, and your deposit is refundable until the chamber ships. Delivery is by appointment; installation is quoted with your chamber.
Who can buy the ARK Lounge?
Hyperbaric chambers are prescription medical devices in the US, and FDA clearance status is listed on your quote. Some states require a medical director or physician supervision for sessions. Confirm your state’s rules before purchase; we walk through them on your practice review.
