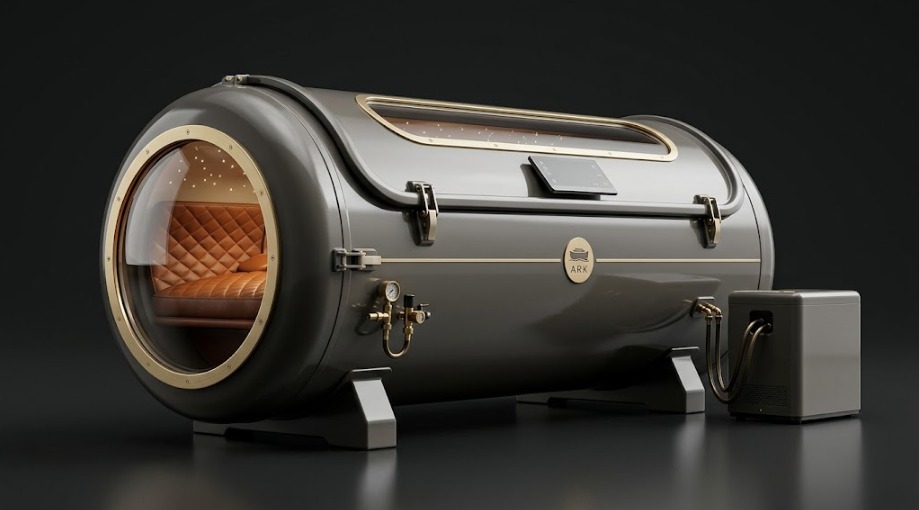

Concept renders in the ARK Graystone finish. Windows, interior trim and accessories follow the specifications below.
- For: Longevity clinics, chiropractors and med spas building a signature session.
- Session: Client lies back, with windows at the head and foot.
- Your room: Delivered crated; some rooms need a dedicated circuit, checked before any deposit.
$125 a session, 3 a day, 20 days: $7,500 a month before the lease estimate. Example only, not a projection.
Hyperbaric chambers are prescription medical devices in the US. Confirm your state’s rules on ownership and medical supervision before purchase; we cover this on your practice review.
Specifications
| Pressure | 2.0 ATA; adjustable from 1.4 to 2.0 ATA |
|---|---|
| Chamber type | Hard shell, lying |
| Shell | Stainless steel in Graystone |
| Size | 89" long × 30" diameter |
| Chamber weight | 507 lb |
| Operating unit | About 31" × 16" × 35", 175–200 lb |
| Seating | One guest lying, up to 265 lb |

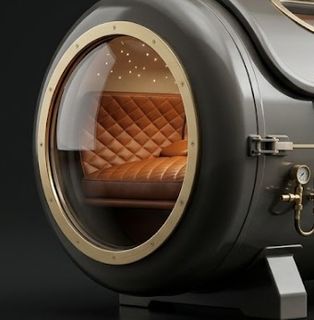

| Windows | Two double-layer polycarbonate windows, head and foot |
| Door | Clear entry door; a sensor blocks pressurizing until it is fully closed |

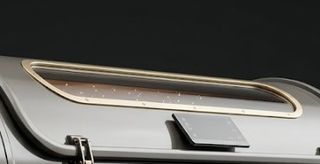

| Controls | Inside and outside control panels with displays for temperature, humidity and oxygen purity; session timer to 120 minutes |
| Communication | Intercom phone, inside to outside |
| Oxygen supply | 10 L/min oxygen concentrator, 90–97% purity, by mask; built-in breathing mask system available |
| Air supply | Oil-free compressor, 85 L/min; two cooling and drying units; air purifier and sterilizer |
| Power | 110 V or 220 V, 1,400–1,700 W; circuit checked at your site survey |

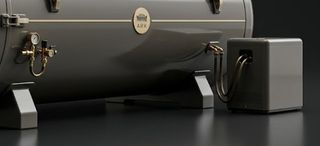

| Safety | Automatic depressurization on power failure; door sensor; emergency release valve; pressure relief and deflate valves |
| Lighting | LED reading light |
| Certifications | Listed on your quote |
| Installation | Placement, setup and staff training, quoted with your chamber |
| Red light | Companion Graystone panel, outside the chamber |
| FDA clearance | Status listed on your quote |
| Warranty | Handled by ARK; term confirmed with your quote |
| Shipping | Varies by model; confirmed in your quote |
What’s in the box
- The chamber
- Operating unit: oil-free air compressor, 10 L oxygen concentrator, cooling units, air purifier and sterilizer
- Oxygen mask
- Air and oxygen tubes
- Spare filters and fuses
- Power cable
Installation requirements
- Floor space for an 89-inch chamber plus the operating unit beside it
- Floor rated for a 507 lb chamber plus your client
- A doorway and path wide enough for the crate, checked at the site survey
- 110 V or 220 V power; some rooms need a dedicated circuit
- Room air conditioning sized for the operating unit’s heat
Questions
What does my room need for the ARK Solo Tube?
Floor space for an 89-inch chamber and its operating unit, a floor rated for 507 lb plus your client, and 110 V or 220 V power. We check your room, doorway and electrical panel at the site survey, before any deposit.
How long until the ARK Solo Tube is running?
Shipping time varies by model and is confirmed in your quote. You get a written delivery estimate before any deposit, and your deposit is refundable until the chamber ships. It arrives crated; placement, setup and staff training are quoted with your chamber.
Who can buy the ARK Solo Tube?
Hyperbaric chambers are prescription medical devices in the US, and FDA clearance status is listed on your quote. Some states require a medical director or physician supervision for sessions. Confirm your state’s rules before purchase; we walk through them on your practice review.
